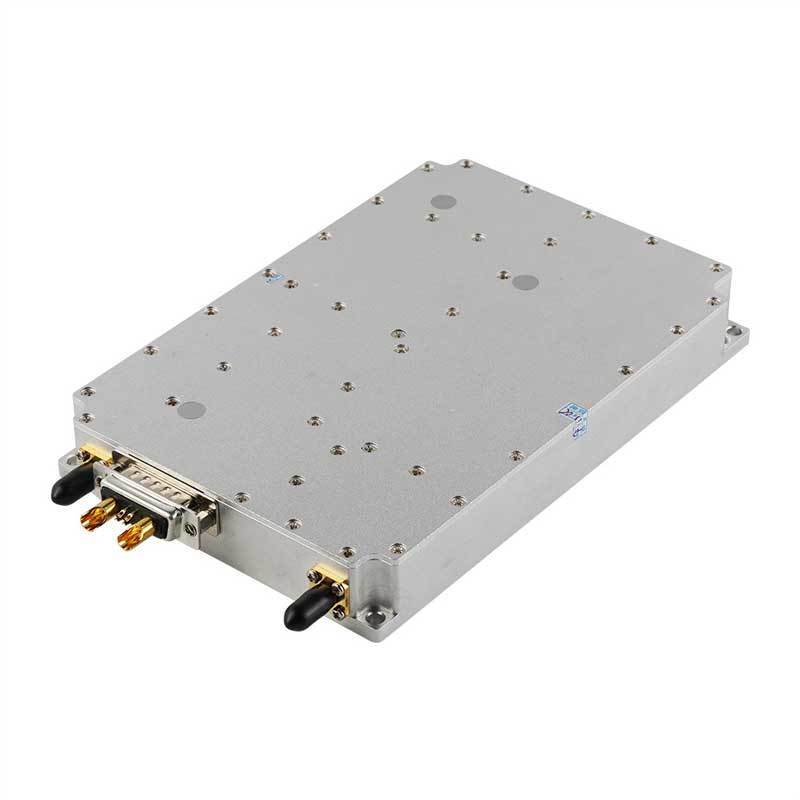

TETRA 758–776 MHz 10W Power Amplifier Module

Name: TETRA 758–776 MHz 10W Power Amplifier Module
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: BT-PAT700-18M10W-7W2-SMA
Price: 5500.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Shenzhen

Nomor model: BT-PAT700-18M10W-7W2-SMA

Ketentuan Pembayaran & Pengiriman

Harga: Price Negotiable

Kemasan rincian: Karton

Waktu pengiriman: 35 hari setelah PO

Syarat-syarat pembayaran: L/C,D/A,D/P,T/T

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      TETRA 758–776 MHz power amplifier, 10W RF power amplifier module, TETRA band power amplifier module


Keuntungan RF:	50 ± 1dB	Rentang penyesuaian gain:	≥20 dB
Rentang Frekuensi:	758–776 MHz	Pemantauan & Perlindungan:	ALC / VSWR / Daya / Suhu
Daya Keluaran:	40 ± 1 dBm / 10W	Antarmuka Kontrol:	RS485

Keuntungan RF:	50 ± 1dB
Rentang penyesuaian gain:	≥20 dB
Rentang Frekuensi:	758–776 MHz
Pemantauan & Perlindungan:	ALC / VSWR / Daya / Suhu
Daya Keluaran:	40 ± 1 dBm / 10W
Antarmuka Kontrol:	RS485

Deskripsi

TETRA 758–776 MHz 10W Power Amplifier Module

TETRA 758–776 MHz 10W Power Amplifier Module A compact TETRA RF power amplifier module for 758-776 MHz wireless communication systems, featuring 10W-class output power, high gain, adjustable attenuation, ALC, and RS485-based monitoring and control. Product Overview The BT-PAT700-18M10W-7W2-SMA is a TETRA-band RF Power Amplifier Module designed for wireless communication equipment operating from 758 to 776 MHz. It provides 40 ± 1 dBm output power with 50 ± 1 dB gain,
