TDD-LTE PA Module BT-PL3500M-39-50N1

Name: TDD-LTE PA Module BT-PL3500M-39-50N1
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: BT-PL3500M-39-50N1
Price: 5500.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Shenzhen

Nomor model: BT-PL3500M-39-50N1

Ketentuan Pembayaran & Pengiriman

Harga: Price Negotiable

Kemasan rincian: Karton

Waktu pengiriman: 35 hari setelah PO

Syarat-syarat pembayaran: L/C,D/A,D/P,T/T

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      3400-3600 MHz TDD-LTE PA Module, 39 dBm PA Output RF Front-End Module, 50 dB PA Gain LNA PA Module


Rentang Frekuensi:	3400–3600MHz	Daya Keluaran:	39±1 dBm / 8W
Keuntungan PA:	50±1dB	Keuntungan LNA:	25±1dB
Bandwidth:	200MHz	Dapatkan penyesuaian:	≥20 dB

Rentang Frekuensi:	3400–3600MHz
Daya Keluaran:	39±1 dBm / 8W
Keuntungan PA:	50±1dB
Keuntungan LNA:	25±1dB
Bandwidth:	200MHz
Dapatkan penyesuaian:	≥20 dB

Deskripsi

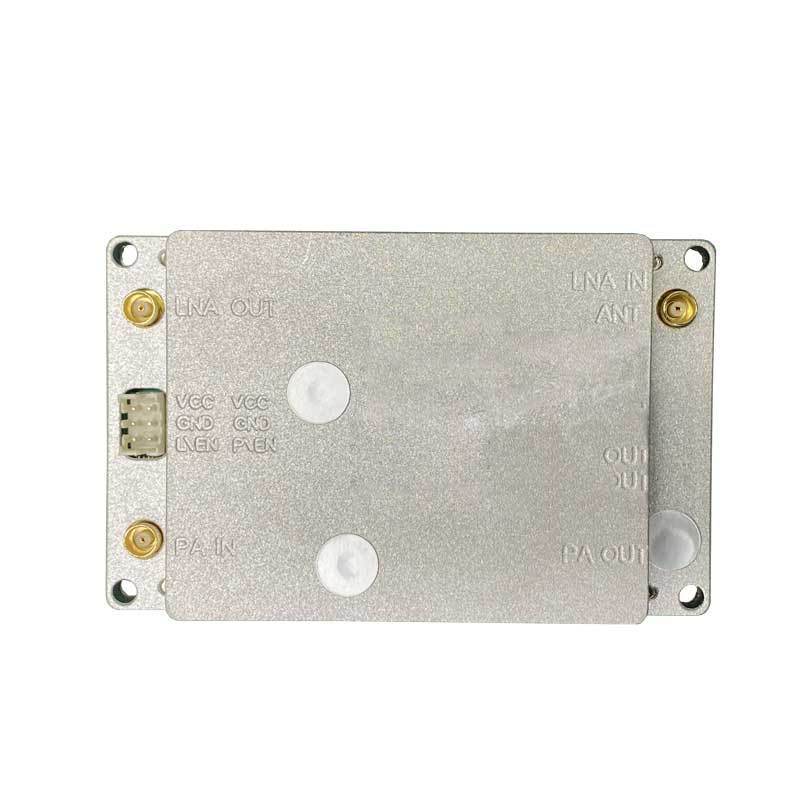

TDD-LTE PA Module BT-PL3500M-39-50N1

TDD-LTE PA Module BT-PL3500M-39-50N1 Integrated RF front-end module for TDD-LTE wireless communication systems, featuring 3400–3600 MHz operation, 39 dBm PA output power, 50 dB PA gain, and 25 dB LNA gain. Product Overview The BT-PL3500M-39-50N1 is a TDD-LTE 3500 MHz LNA PA Module designed for RF transmission and reception applications. It integrates a power amplifier (PA) for the transmit path and a low-noise amplifier (LNA) for the receive path within one compact RF module.
