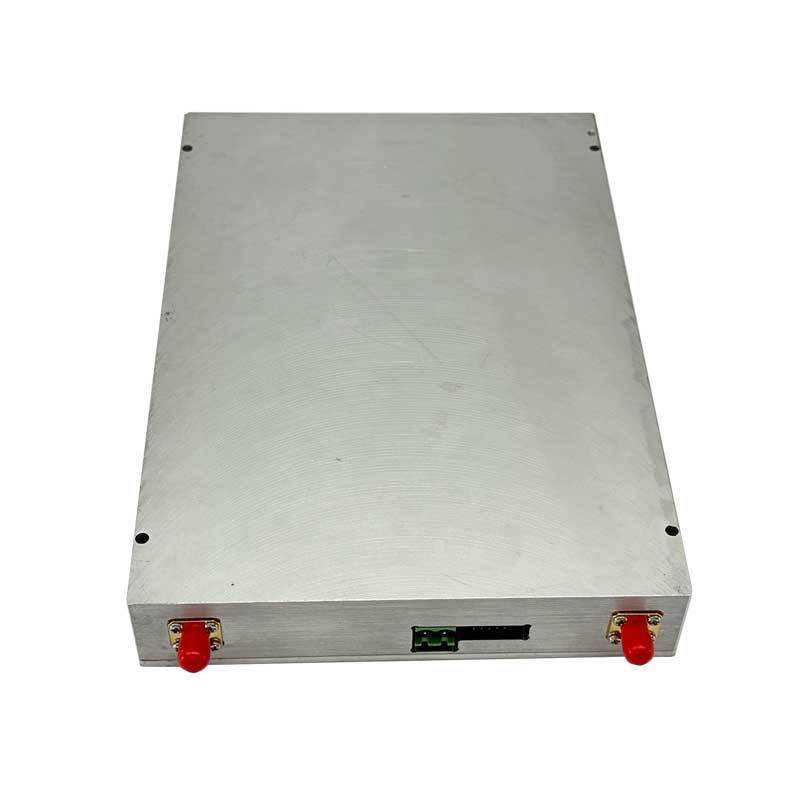

TETRA PA Module BT-PA398-35M8W-RS485

Name: TETRA PA Module BT-PA398-35M8W-RS485
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: BT-PA398-35M8W-RS485
Price: 5500.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Shenzhen

Nomor model: BT-PA398-35M8W-RS485

Ketentuan Pembayaran & Pengiriman

Harga: Price negotiable

Kemasan rincian: Karton

Waktu pengiriman: 35 hari setelah PO

Syarat-syarat pembayaran: L/C,T/T

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      380-415 MHz TETRA PA Module, 39 ± 1 dBm Output Power RF Power Amplifier Module, 50 ± 2 dB Gain TETRA RF Power Amplifier


Frekuensi berdering (MHz):	380-415MHz	Ukuran:	200×140×28mm
Keuntungan (maks.):	50±2dB	Daya Keluaran (maks.):	39±1dBm
Lebar Pita (MHz):	35MHz	Daya masukan (maks.):	+10dBm

Frekuensi berdering (MHz):	380-415MHz
Ukuran:	200×140×28mm
Keuntungan (maks.):	50±2dB
Daya Keluaran (maks.):	39±1dBm
Lebar Pita (MHz):	35MHz
Daya masukan (maks.):	+10dBm

Deskripsi

TETRA PA Module BT-PA398-35M8W-RS485

TETRA PA Module BT-PA398-35M8W-RS485 A 380–415 MHz TETRA RF power amplifier module designed for wireless communication systems, featuring 8 W maximum output power, up to 50 dB gain, adjustable gain control, ALC, and RS485 monitoring. Parameter Specification Frequency 380–415 MHz Output Power 39 ± 1 dBm / Max. 8 W Gain 50 ± 2 dB Max. Power Supply +28 V DC / ≤3.8 A Product Overview The BT-PA398-35M8W-RS485 is a TETRA RF Power Amplifier Module designed for the 380–415 MHz
