Rincian Produk
Place of Origin: Shenzhen, China
Model Number: CD15Pro
Ketentuan Pembayaran & Pengiriman
Minimum Order Quantity: 1 Set
Packaging Details: Carton
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 Set / Month
Frequency Range: |
1428~1448MHz (Std.) / 2401~2481MHz / 806~826MHz |
Tx Power: |
25dBm ± 2 |
Modulation: |
QPSK / 16QAM / 64QAM |
Data Rate: |
24Mbps @ 10MHz (Peak) |
Serial Port: |
1TTL / 1RS485 / 1 S.BUS |
Power Supply: |
DC12V~24V |
Dimension: |
≤ 94.5 × 77 × 32mm (Air) |
Weight: |
< 330g (Air) |
Frequency Range: |
1428~1448MHz (Std.) / 2401~2481MHz / 806~826MHz |
Tx Power: |
25dBm ± 2 |
Modulation: |
QPSK / 16QAM / 64QAM |
Data Rate: |
24Mbps @ 10MHz (Peak) |
Serial Port: |
1TTL / 1RS485 / 1 S.BUS |
Power Supply: |
DC12V~24V |
Dimension: |
≤ 94.5 × 77 × 32mm (Air) |
Weight: |
< 330g (Air) |

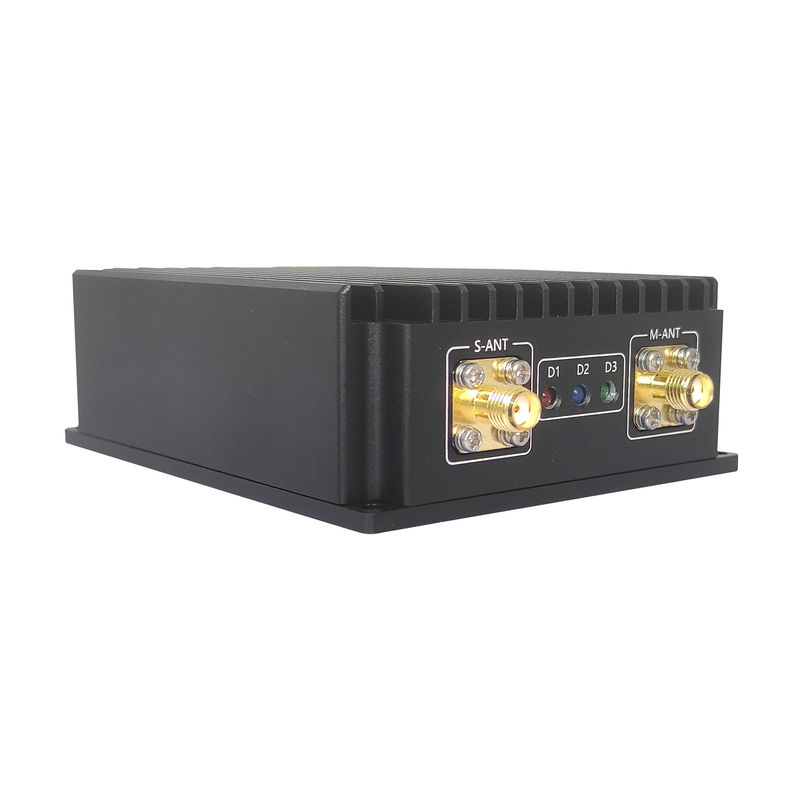

CD15NMTPro adalah VTX (Video Transmitter) untuk UAV & Drones, itu mendukung
Aksesoris
Antenna OMNI untuk Unit Udara × 2
Antenna OMNI untuk Unit Darat × 2
Kabel ETH × 2 atau Kabel ETH × 1 + Kabel SDI/HDMI × 1 (Disesuaikan)
Kabel serial × 2
Kabel S.BUS × 1
Kabel listrik XT30 × 1
