Rincian Produk
Place of Origin: Shenzhen, China
Sertifikasi: CE
Model Number: CD15NMT-V3
Ketentuan Pembayaran & Pengiriman
Minimum Order Quantity: 1 Set
Packaging Details: Carton
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 Set / Month
Frequency Range: |
1428~1448MHz (Std.) / 2401~2481MHz / 806~826MHz |
Tx Power: |
300mW |
Modulation: |
QPSK / 16QAM / 64QAM |
Data Rate: |
24Mbps @ 10MHz (Peak) |
Serial Port: |
1 × RS232 (Std.) / TTL / RS485 / RS422 + 1 × USB |
Ethernet Port: |
1 × Ethernet Port |
Power Supply: |
DC12V |
Power Consumption: |
< 5W (Air) |
Dimension: |
84×70×19mm (Air) |
Weight: |
< 140g (Air) |
Frequency Range: |
1428~1448MHz (Std.) / 2401~2481MHz / 806~826MHz |
Tx Power: |
300mW |
Modulation: |
QPSK / 16QAM / 64QAM |
Data Rate: |
24Mbps @ 10MHz (Peak) |
Serial Port: |
1 × RS232 (Std.) / TTL / RS485 / RS422 + 1 × USB |
Ethernet Port: |
1 × Ethernet Port |
Power Supply: |
DC12V |
Power Consumption: |
< 5W (Air) |
Dimension: |
84×70×19mm (Air) |
Weight: |
< 140g (Air) |

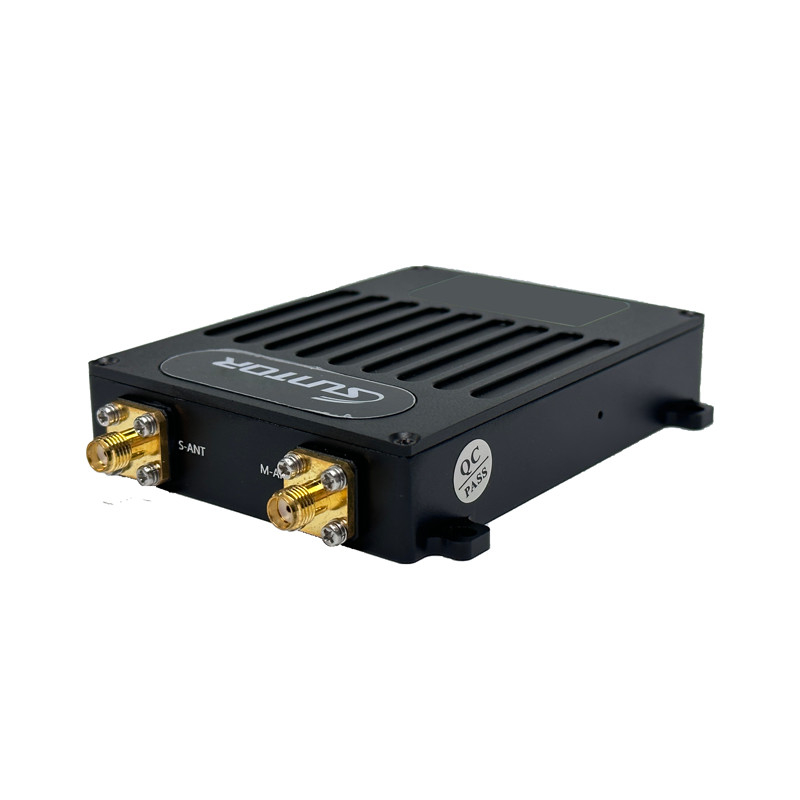

CD15NMT-V3 adalah VTX (Video Transmitter) untuk UAV & Drones, itu mendukung
1.4GHz / 2.4GHz / 800MHz Rentang Frekuensi Opsional
Bekerja pada Point-to-Point atau Point-to-Multi-Point Mode
1T2R Teknologi MIMO
Perlindungan Enkripsi AES128
FHSS Frekuensi Hopping (*)
Hingga 20KM Air-to-Ground Video Transmission
Aku tidak tahu.
